图的最短路径
前言
在《数据结构》（严蔚敏&吴伟民）一书中花了一章节的内容来介绍图
在图的遍历一节中介绍了两种遍历方法：DFS、WFS
本篇内容主要介绍WFS的应用
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
public class Dijkstra {
private static final int MAX = 1024;
private static final int MATRIX_LEN= 12;
private static int[] dist = new int[MATRIX_LEN];
private static boolean[] S = new boolean[MATRIX_LEN];
private static int[] prev = new int[MATRIX_LEN];
public static void main(String[] args) {

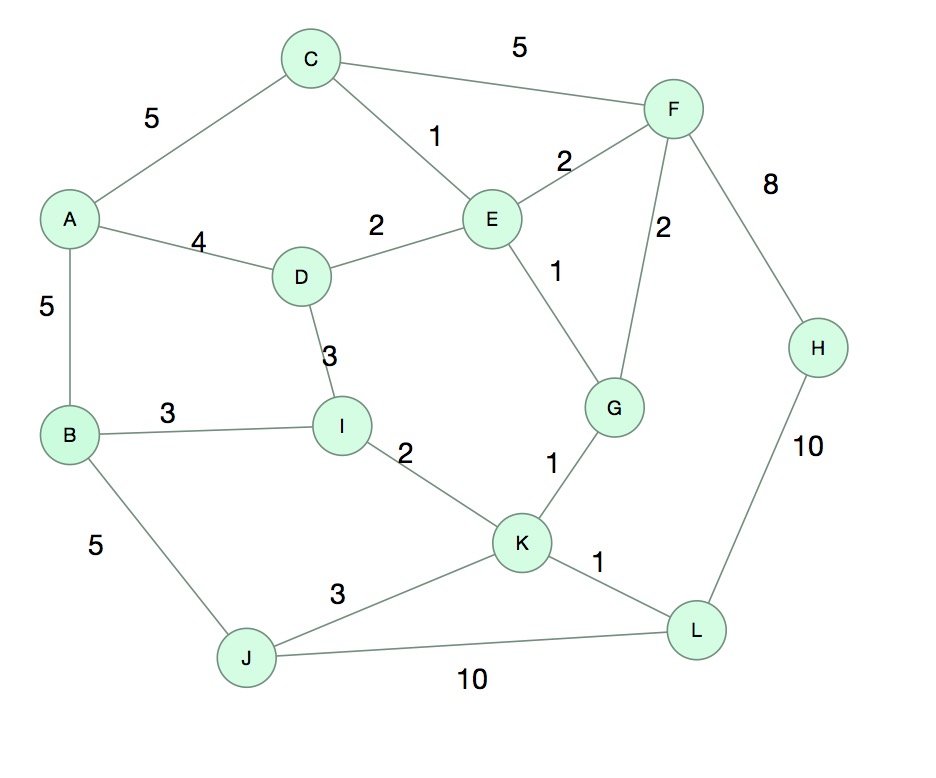

int[][] dMatrix=\{\{0,5,5,4,MAX,MAX,MAX,MAX,MAX,MAX,MAX,MAX},
{5,0,MAX,MAX,MAX,MAX,MAX,MAX,3,5,MAX,MAX},
{5,MAX,0,MAX,1,5,MAX,MAX,MAX,MAX,MAX,MAX},
{4,MAX,MAX,0,2,MAX,MAX,MAX,3,MAX,MAX,MAX},
{MAX,MAX,1,2,0,2,1,MAX,MAX,MAX,MAX,MAX},
{MAX,MAX,5,MAX,2,0,2,8,MAX,MAX,MAX,MAX},
{MAX,MAX,MAX,MAX,1,2,0,MAX,MAX,MAX,1,MAX},
{MAX,MAX,MAX,MAX,MAX,8,MAX,0,MAX,MAX,MAX,10},
{MAX,3,MAX,3,MAX,MAX,MAX,MAX,0,MAX,2,MAX},
{MAX,5,MAX,MAX,MAX,MAX,MAX,MAX,MAX,0,3,10},
{MAX,MAX,MAX,MAX,MAX,MAX,1,MAX,2,3,0,1},
{MAX,MAX,MAX,MAX,MAX,MAX,MAX,10,MAX,10,1,0\}\};
dijkstra(dMatrix,0);
}
public static void dijkstra(int[][] dMatrix,int p){
for(int i=0; i<dMatrix.length; i++) {
S[i] = false;
dist[i]=dMatrix[p][i];
if (dMatrix[p][i] == MAX) {
prev[i] = -1;
} else {
prev[i] = p;
}
}
dist[p] = 0;
S[p] = true;
for( int i=1; i<dMatrix.length; i++){
int u = p;
int min = MAX;
for (int j=0; j<dMatrix.length; j++){
if( !S[j] && dist[j] < min){
u = j;
min = dist[j];
}
}
S[u] =true;
for( int j=0; j<dMatrix.length; j++){
if( !S[j] && dMatrix[u][j] < MAX){
if( dist[u] + dMatrix[u][j] < dist[j] ){
dist[j] = dist[u] + dMatrix[u][j];
prev[j] = u;
}
}
}
}
}
}
